Build Your Own
Real Pokédex
— Q-dex

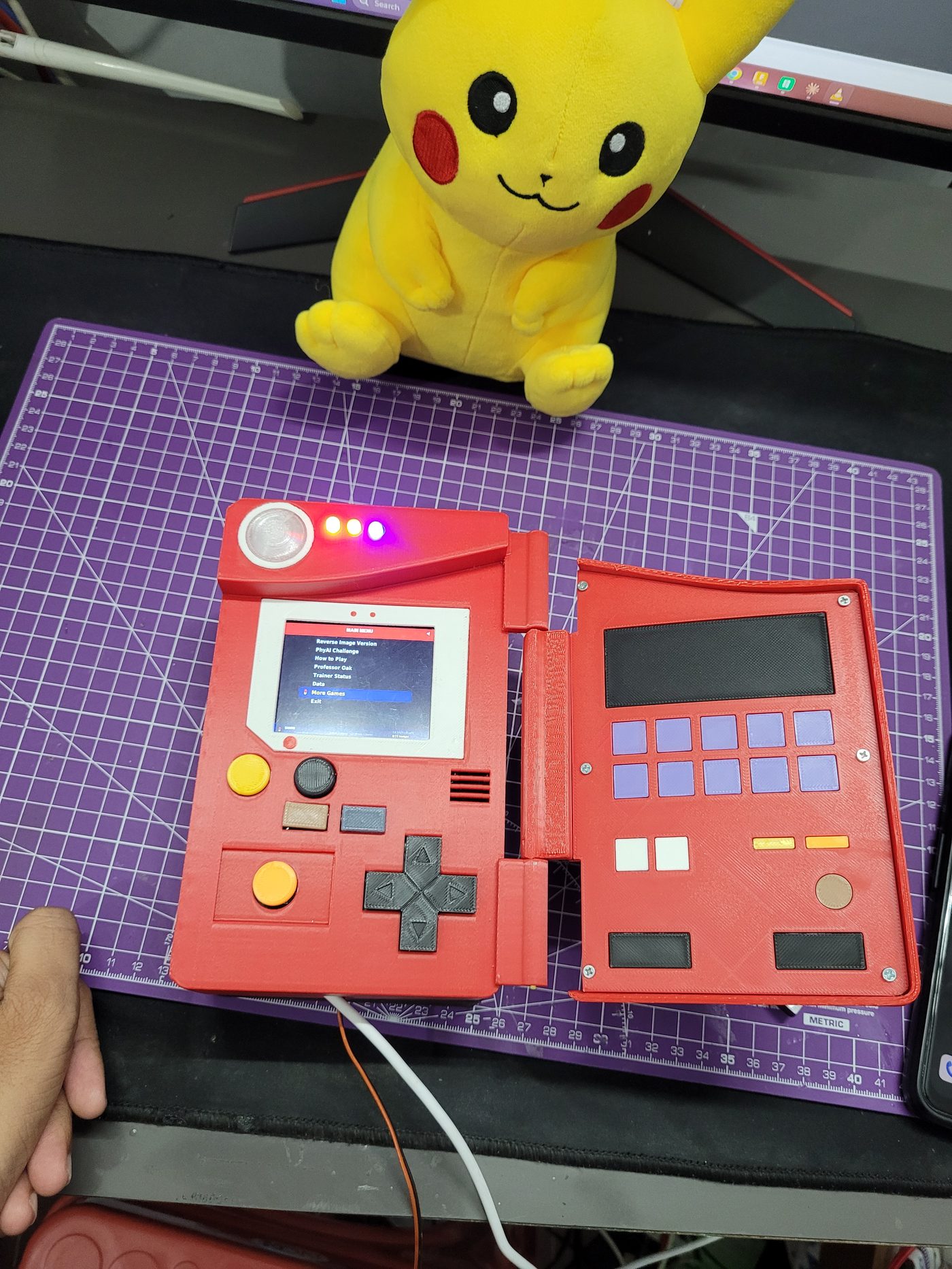

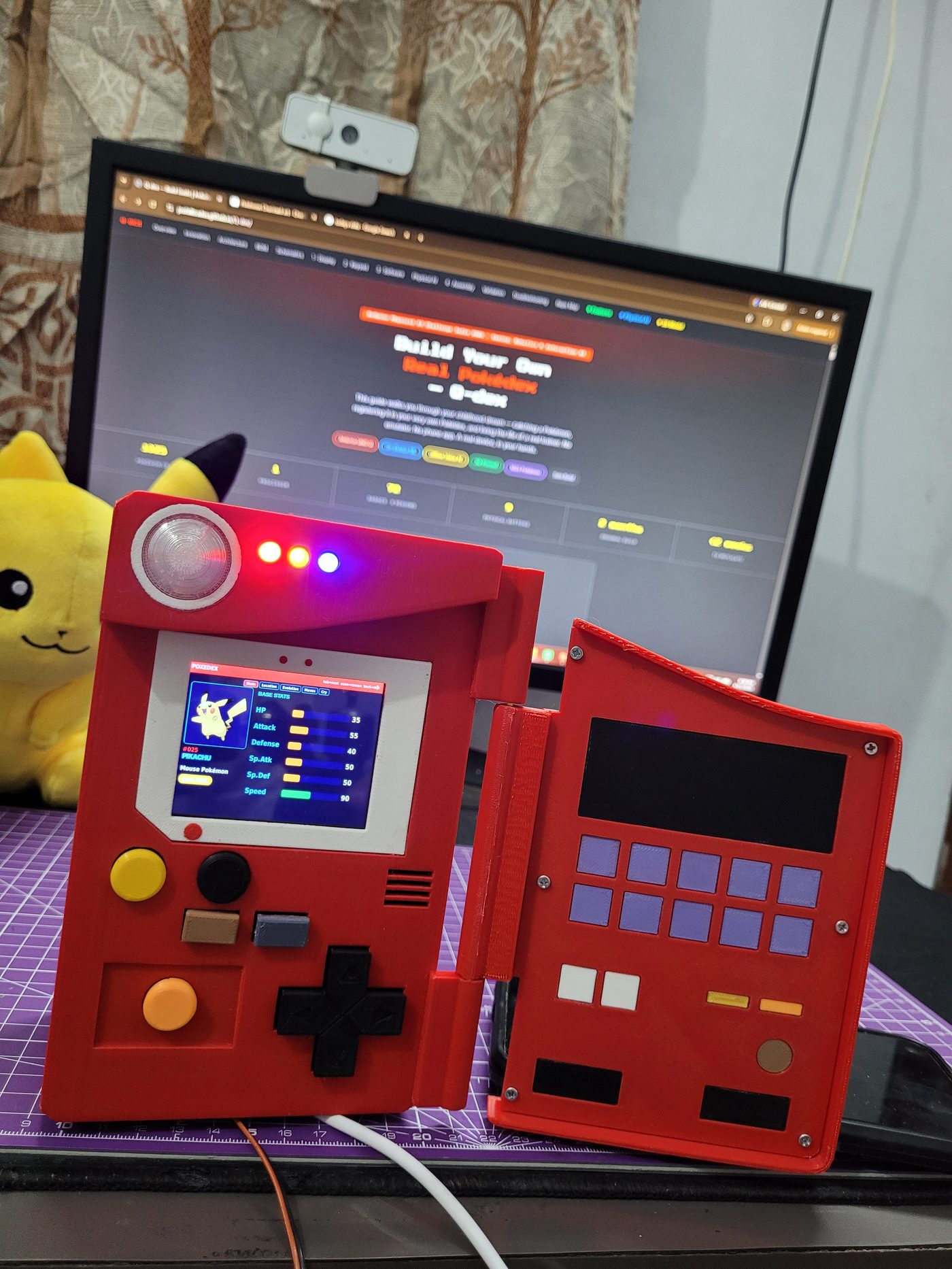

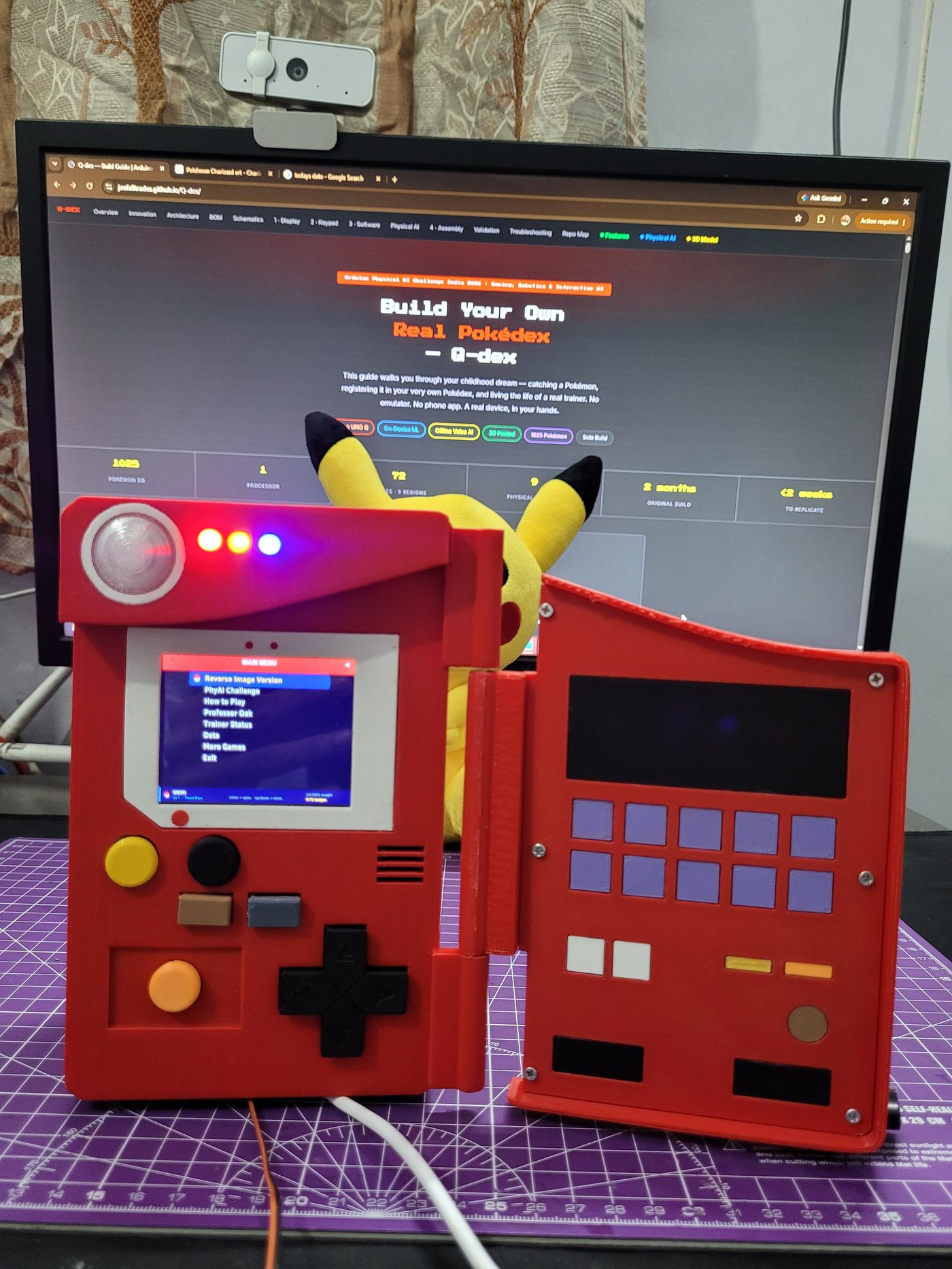

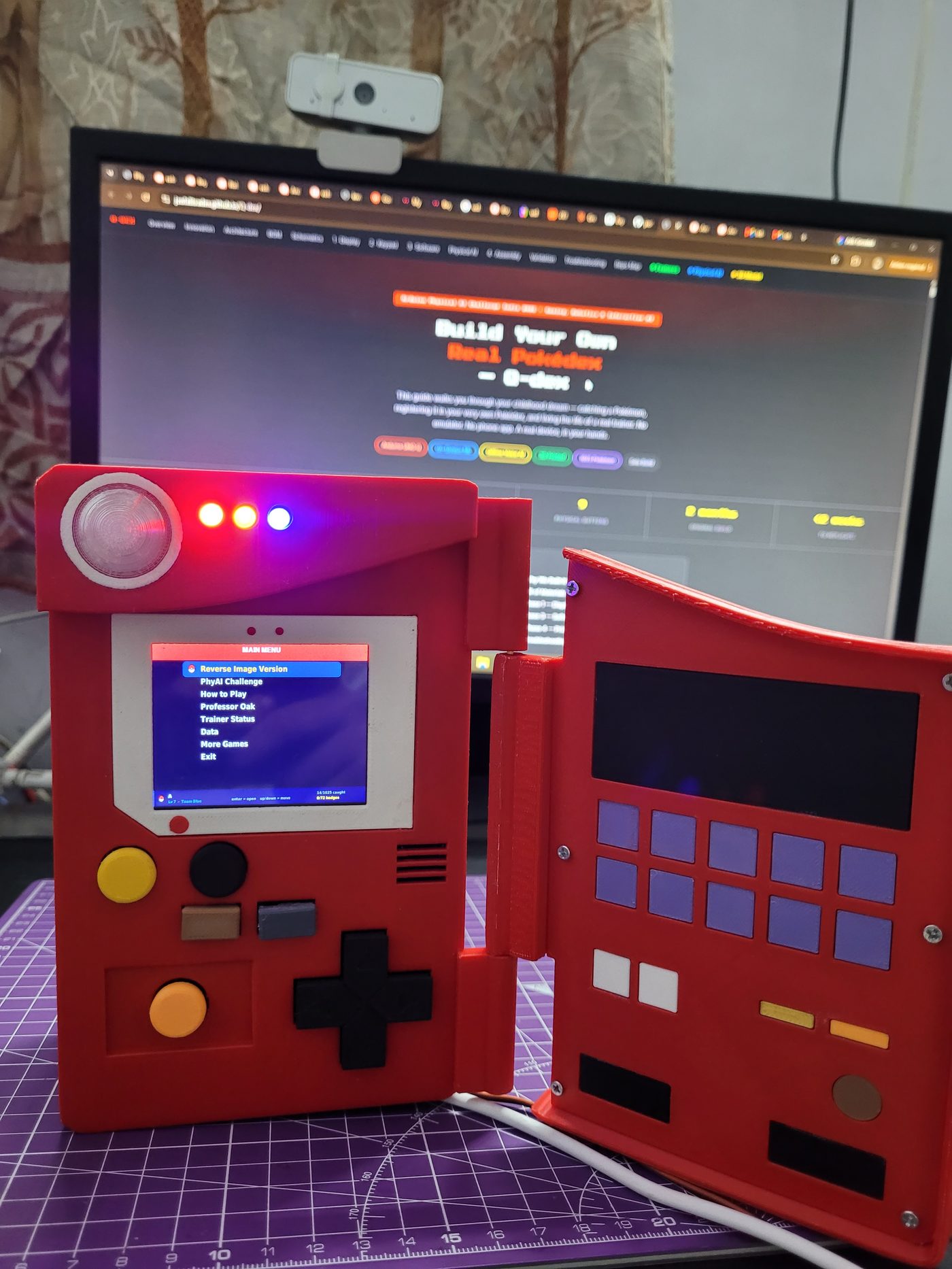

Q-dex is a real, handheld Pokédex — not a simulation, not a phone app. Point it at a Pokémon card or figure, press SCAN, and an on-device neural network identifies it, registers it to your trainer profile, awards XP, and unlocks badges. Press OAK and ask a question out loud; Professor Oak answers back in his own voice.

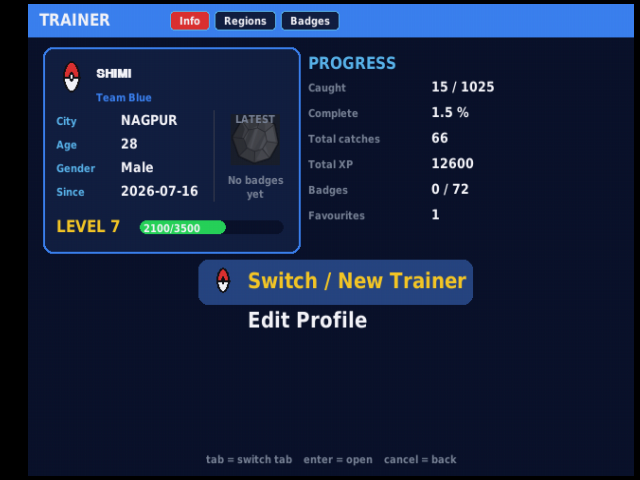

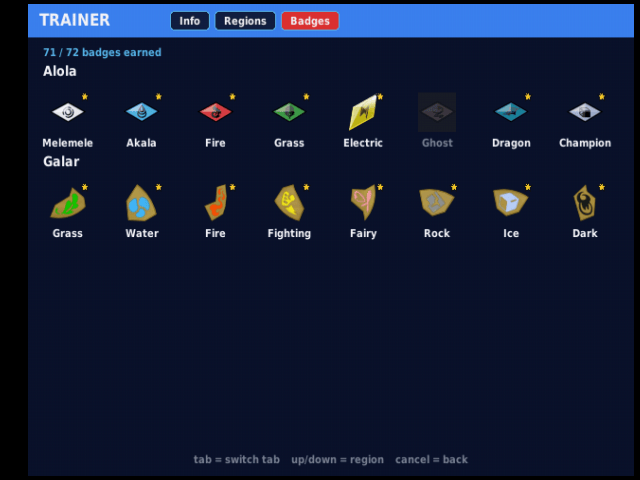

It runs a full 1025-Pokémon database, multi-trainer profiles, and an XP & badge system spanning 9 regions — all inside a 3D-printed Gen-1 Kanto enclosure that opens and closes on a real hinge.

Three design decisions define this project. Each solves a real constraint rather than following the obvious path.

Decision 1 — Split the workload: one processor, one controller

The Arduino UNO Q is a Linux board. Linux is not real-time: polling GPIO from Python means missed button presses whenever the scheduler is busy running inference. So the UNO Q does zero GPIO. An ESP32-C3 Super Mini polls all 9 buttons at a steady 50 Hz and streams a keyword per press over USB serial. The UNO Q reads those events in a daemon thread and drops them into a queue.

Result: button response stays crisp even while the neural network is running. This is the single most important architectural choice in the build.

Decision 2 — Two recognition paths: on-device AND cloud

Q-dex identifies Pokémon two ways, and keeping both is deliberate. The Reverse Image Version uploads the camera photo and queries Google Lens (via SerpAPI) — powerful, covering all 1025 Pokémon, but it needs an internet connection. The PhyAI Challenge runs our own MobileNetV2 vision model (via ai_edge_litert) entirely on the UNO Q — only four Pokémon so far, but no connection, no latency, no per-use cost. The speech model (whisper.cpp, tiny.en) for Professor Oak also runs locally.

The cloud path gives breadth; the on-device path gives independence and proves the "Physical AI" concept — intelligence computed on the device itself. Having both means the Pokédex is powerful when online and still useful in a cave.

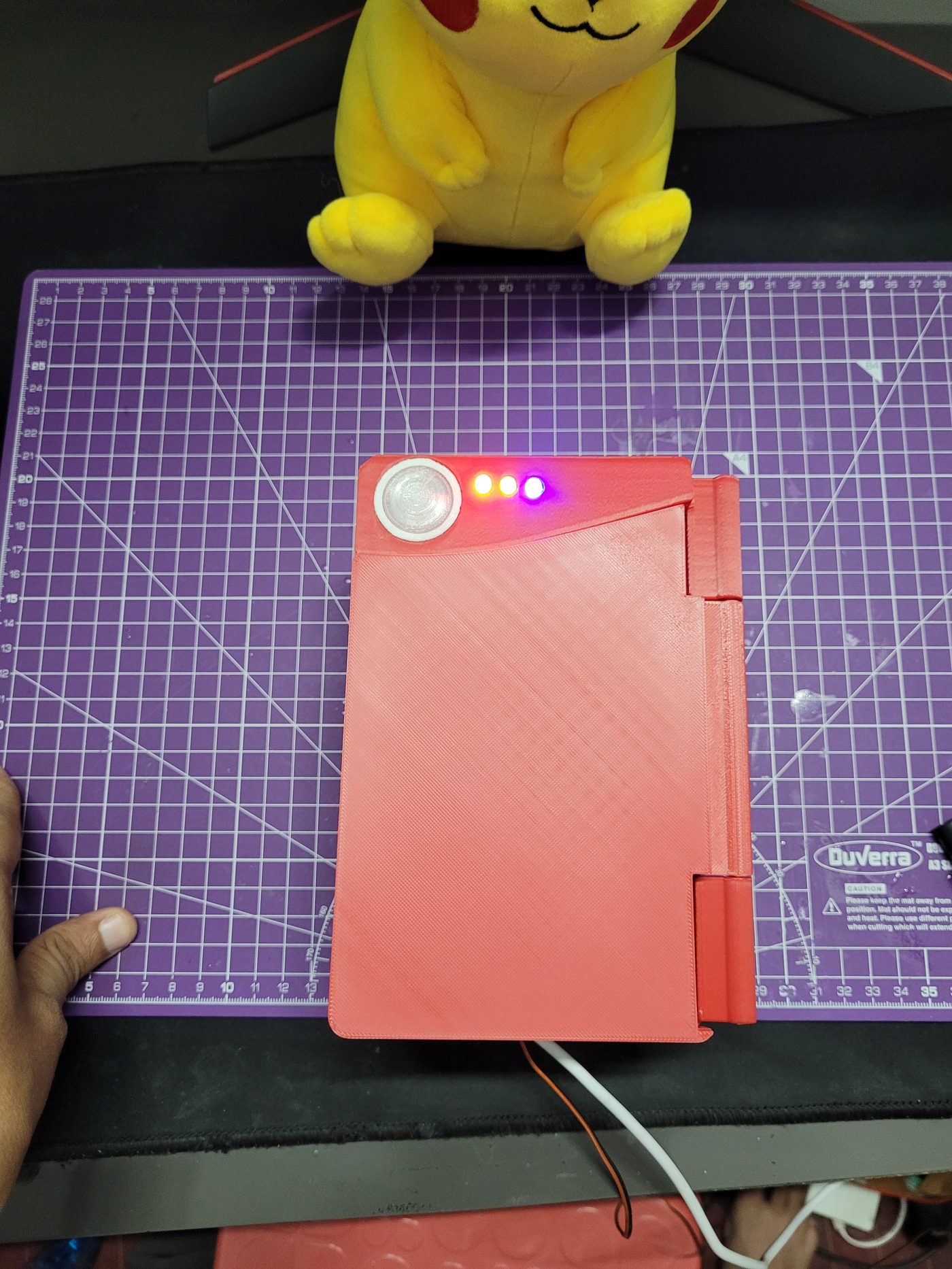

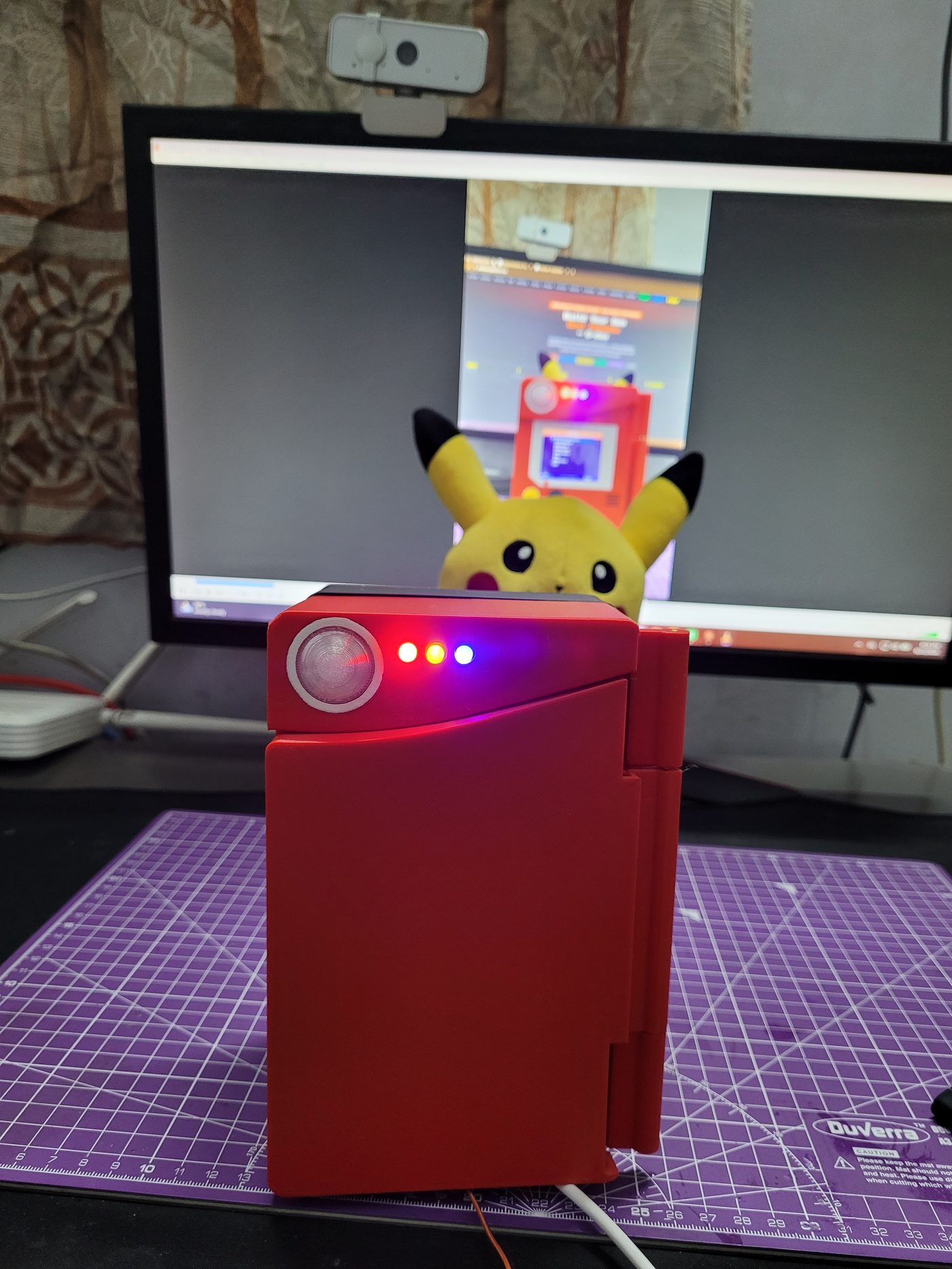

Decision 3 — Make the enclosure a functional part, not a shell

The lid geometry is dimensioned against the button caps: caps sit at z=−3.7 mm, exactly 0.3 mm proud of the recessed panel field at z=−4.0 mm. When the lid rotates 180° closed, the LidFacePlate clears every cap by that 0.3 mm. Six mounting bosses were shortened specifically to make this clearance work. The enclosure closes like the real thing because the CAD was solved as an interference problem, not styled as a box.

Full system block diagram showing every subsystem, interface, and data direction.

Runtime data flow — the SCAN action

Pressing SCAN can take one of two paths, depending on which mode you are in — and this split is the core of the project. Both start the same way (a button byte from the ESP32 reaches the app), then diverge:

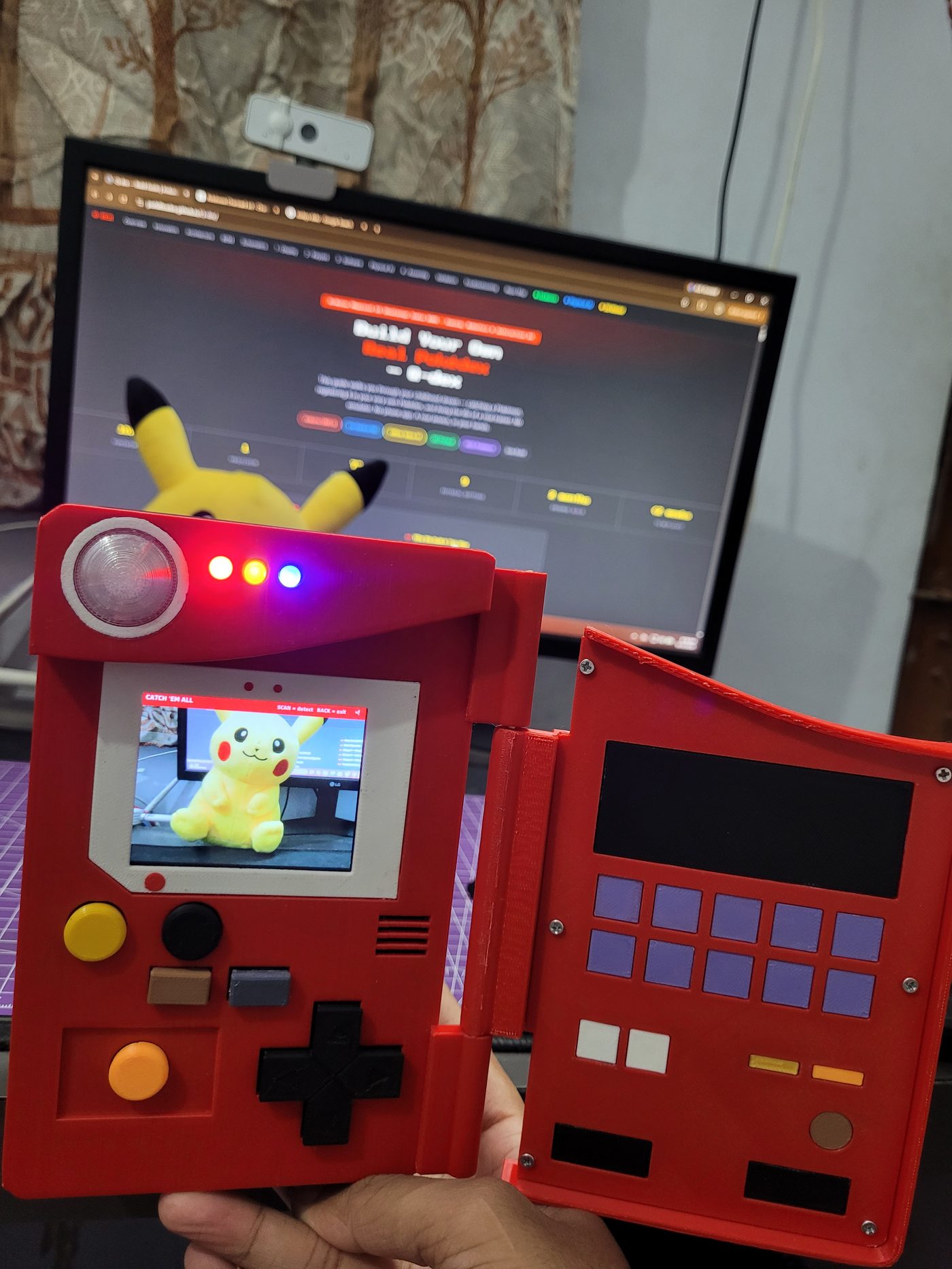

Path 1 — Reverse Image Version (cloud, all 1025 Pokémon)

Path 2 — PhyAI Challenge (on-device, offline)

Both paths run their heavy work in a worker thread, so the event loop keeps rendering a scan animation and never blocks. The reverse-image path is the primary one and advances trainer progress; the on-device path is a demonstration of true Physical AI.

Every component needed for one complete Q-dex. Prices are the actual INR retail prices paid (Robu.in / Zbotic / Amazon India, 2026) with product links where available. Prices will vary over time — treat them as a real-world budgeting guide.

A · Core Electronics

B · Passives, LEDs & Wiring

C · Mechanical & 3D-Printed

There are two parts to the wiring: the ESP32-C3 side (9 buttons wired directly to GPIO, plus the WS2812 lens LED), and the USB/HDMI interconnect on the UNO Q. Both are given here at pin level.

5.0 — Full system schematic

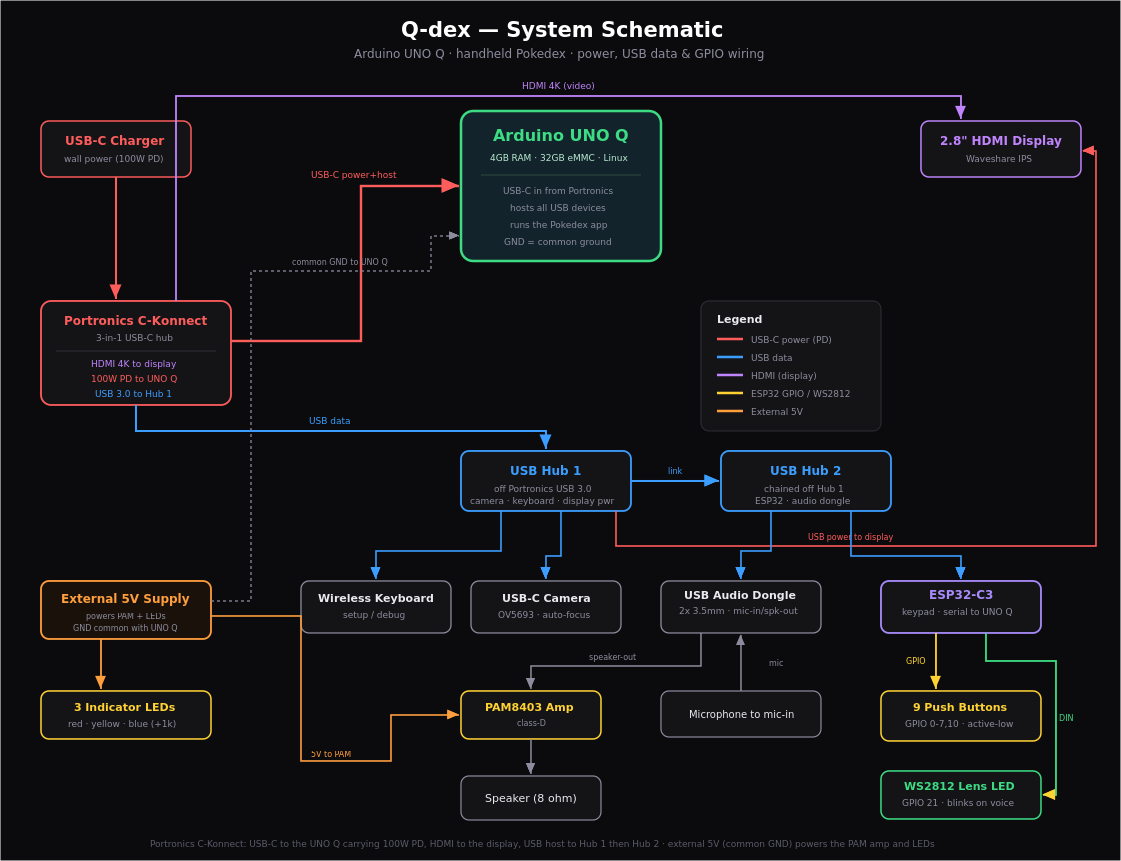

The complete picture — how power, USB data, HDMI and the GPIO peripherals all connect. A Portronics C-Konnect USB-C hub feeds the UNO Q (100 W PD power in), sends HDMI to the display, and provides the USB host link that chains through two USB hubs to the camera, keyboard, audio dongle and ESP32. A separate 5 V supply (ground common with the UNO Q) powers the PAM8403 amplifier and the indicator LEDs.

5.1 — ESP32-C3 keypad schematic

Each button connects its GPIO pin to GND. The firmware enables the ESP32's internal pull-up, so an unpressed button reads HIGH and a pressed button reads LOW (active-low). The firmware debounces each press in software (a short delay after a press). A small capacitor across each button would suppress bounce in hardware too, but this build relies on the firmware debounce and does not use them.

Pin assignment table

This is the exact mapping from the firmware (keypad_led.ino). Each button connects its GPIO to GND; the ESP32's internal pull-ups make them active-low, so they need INPUT_PULLUP — no external resistors. On each press the ESP32 prints a keyword over USB serial, which the app maps to an action.

The lens LED (WS2812)

5.2 — UNO Q interconnect

No soldering here — this is the cable map. Getting it wrong is the most common bring-up failure.

The Arduino UNO Q ships with Ubuntu already installed — it is a full Linux single-board computer, not a bare microcontroller. So there is no OS to flash; you just need to boot it, connect it to your network, and get terminal access. Do this once, at the start, and every later phase talks to the board over SSH.

Step 1 — First boot like any SBC

For the very first setup, treat the UNO Q like a desktop: connect a monitor (HDMI), a USB keyboard and mouse, and power (5 V 3 A USB-C). It boots straight into the Ubuntu desktop.

Step 2 — Connect to Wi-Fi

Use the Ubuntu desktop's Wi-Fi menu (top-right) to join your network, or from a terminal:

# List nearby networks
nmcli device wifi list

# Join yours (use your network name and password)
nmcli device wifi connect "YOUR_WIFI_NAME" password "YOUR_WIFI_PASSWORD"

Step 3 — Find the board's IP address

hostname -I

The first address it prints (for example 192.168.1.56) is the board's address on your network. Write it down — you use it to connect from your laptop.

Step 4 — Connect from your laptop over SSH

From here on you can unplug the monitor, keyboard and mouse and work entirely from your laptop. On Windows, MobaXterm is a free, friendly SSH client (macOS and Linux can use the built-in ssh command). Start a new SSH session to the board's IP, logging in as the arduino user:

ssh arduino@192.168.1.56    # use YOUR board's IP

The default user is arduino. You will be asked for its password on first connect. MobaXterm also gives you drag-and-drop file transfer and X11 forwarding, which is handy when the physical display is not connected yet.

Goal: get a pygame window rendering on the Waveshare panel. Nothing else is connected yet — resist the temptation to plug everything in at once.

1. 1
   Connect HDMI

   HDMI end into the UNO Q's HDMI-out, full HDMI end into the Waveshare input. Use the 30 cm cable — longer cables will not route cleanly inside the shell later.

2. 2
   Power the display separately

   The Waveshare panel takes power over its own micro-USB port. Run it from the powered hub, not from the UNO Q, so display current never competes with the camera.

3. 3
   Power the UNO Q

   5 V 3 A USB-C adapter. Wait for full boot, then SSH in over your network.

Verify the framebuffer

# Framebuffer device should exist
ls -l /dev/fb0

# Confirm the resolution the panel negotiated
cat /sys/class/graphics/fb0/virtual_size
# expect: 640,480

# Confirm the kernel sees an HDMI connection
cat /sys/class/drm/*/status | head
# expect at least one: connected

Rotate the display

The Waveshare 2.8" panel comes up in vertical (portrait) orientation, but the Pokédex layout is landscape. Rotate it left so the image is the right way up in the shell:

# Rotate the connected display left (temporary, for testing)
DISPLAY=:0 xrandr --output HDMI-1 --rotate left
# (your output name may differ — run 'DISPLAY=:0 xrandr' to list it)

To make the rotation permanent it is set in the display manager's startup script, so the panel is always landscape from boot.

Render a test frame

import os
os.environ["SDL_VIDEODRIVER"] = "fbcon"
os.environ["SDL_FBDEV"]       = "/dev/fb0"

import pygame

pygame.init()
screen = pygame.display.set_mode((640, 480))
screen.fill((204, 0, 0))                      # Pokedex red

font = pygame.font.SysFont(None, 42)
label = font.render("Q-DEX ONLINE", True, (255, 255, 255))
rect  = label.get_rect(center=(320, 240))
screen.blit(label, rect)

pygame.display.flip()
pygame.time.wait(4000)
pygame.quit()

Run it with python3 screen_test.py. The environment variables must be set before import pygame — SDL reads them at import time, so setting them afterwards silently does nothing.

Now build the input layer. The ESP32-C3 is flashed once and then never touched again — all application logic lives on the UNO Q.

7.1 — Firmware

The ESP32-C3 is flashed once and then never touched again — all application logic lives on the UNO Q. I flashed it using the Arduino IDE from my laptop (not from the UNO Q): connect the ESP32-C3 to the laptop over USB-C, select the board ESP32C3 Dev Module, and before flashing set Tools → USB CDC On Boot → Enabled and install the Adafruit NeoPixel library. The firmware does two jobs: read the 9 buttons and drive the WS2812 lens LED.

The complete firmware is in the repo as keypad_led.ino — the current version, with the LED support. It sends a keyword (like enter or cancel) over USB serial on each press, and blinks the WS2812 teal while audio plays:

#include <Adafruit_NeoPixel.h>

const int NUM_BTN = 9;
int btnPins[NUM_BTN] = {0, 1, 2, 3, 4, 5, 6, 7, 10};
const char* btnKeys[NUM_BTN] = {
  "enter",     // GPIO 0  - SELECT
  "cancel",    // GPIO 1  - BACK
  "tab",       // GPIO 2  - TAB
  "up",        // GPIO 3
  "down",      // GPIO 4
  "right",     // GPIO 5
  "left",      // GPIO 6
  "pageleft",  // GPIO 7  - SCAN
  "pageright"  // GPIO 10 - MUTE
};
bool lastState[NUM_BTN];

// ---- WS2812 LED ----
#define LED_PIN   21
#define LED_COUNT 1
Adafruit_NeoPixel led(LED_COUNT, LED_PIN, NEO_GRB + NEO_KHZ800);
bool audioActive = false;      // set by shimi's '1'/'0' bytes
bool blinkOn     = false;
unsigned long lastBlink = 0;
const unsigned long BLINK_MS = 250;

void setup() {
  Serial.begin(115200);
  for (int i = 0; i < NUM_BTN; i++) {
    pinMode(btnPins[i], INPUT_PULLUP);
    lastState[i] = HIGH;
  }
  led.begin();
  led.setBrightness(120);
  led.show();
}

void loop() {
  // ---- read audio on/off signal from the UNO Q ----
  while (Serial.available() > 0) {
    char c = Serial.read();
    if (c == '1') {
      audioActive = true;
    } else if (c == '0') {
      audioActive = false;
      blinkOn = false;
      led.setPixelColor(0, 0, 0, 0);
      led.show();
    }
  }
  // ---- blink teal while audio is active ----
  if (audioActive) {
    unsigned long now = millis();
    if (now - lastBlink >= BLINK_MS) {
      lastBlink = now;
      blinkOn = !blinkOn;
      if (blinkOn) led.setPixelColor(0, 0, 128, 128);  // teal
      else         led.setPixelColor(0, 0, 0, 0);
      led.show();
    }
  }
  // ---- keypad ----
  for (int i = 0; i < NUM_BTN; i++) {
    bool state = digitalRead(btnPins[i]);
    if (lastState[i] == HIGH && state == LOW) {
      Serial.println(btnKeys[i]);
      delay(50);  // debounce
    }
    lastState[i] = state;
  }
  delay(10);
}

Why active-low

The ESP32-C3's internal pull-ups are far more reliable than its pull-downs, and wiring every switch common to a single GND rail means one shared wire instead of nine separate returns. Inside a hinged enclosure with limited wire space, that difference matters.

7.2 — Host-side serial reader

On the UNO Q, a daemon thread owns the serial port and pushes decoded events into a queue. The pygame loop drains that queue each frame. The read never blocks rendering.

In this build that reader is key_serial.py, run alongside the app. The firmware sends a whole keyword per line (like enter or up), so the reader reads lines, not single bytes. It maps each keyword to an action the app understands and hands it over. Here is a simplified version of the idea:

"""Keypad bridge: read keyword lines from the ESP32-C3 over USB serial."""

import serial

# The firmware prints one of these words per button press
KEY_MAP = {
    "enter": "SELECT",  "cancel": "BACK",   "tab": "TAB",
    "up": "UP",         "down": "DOWN",     "left": "LEFT",  "right": "RIGHT",
    "pageleft": "SCAN", "pageright": "MUTE",
}

ser = serial.Serial('/dev/ttyACM0', 115200, timeout=0.1)

while True:
    line = ser.readline().decode(errors="ignore").strip()
    if line in KEY_MAP:
        action = KEY_MAP[line]
        # hand this action to the app (e.g. write to a pipe / inject a key event)
        deliver(action)

key_serial.py also works the other way: when the app is speaking it sends a '1' (start) or '0' (stop) byte back to the ESP32 so the lens LED blinks in time with the voice. Reading whole lines and reconnecting on a serial error (common after a USB power blip) keeps the input responsive without crashing the app.

Because key_serial.py delivers button presses as normal key events, the main app in pokedex_app.py just reads its input in the usual pygame way — it does not need to know the presses came from a physical keypad over serial. That is why you start key_serial.py first (it holds the serial port) and then start pokedex_app.py (see §8.7). During development over SSH you can also use a normal keyboard, since both arrive as the same key events.

7.3 — Wiring the buttons

1. 1
   Build the GND rail first

   Cut one length of black wire. Strip a small window every ~15 mm and solder each button's common leg to those windows. One shared ground wire with nine taps is far tidier than nine separate returns inside a hinged shell.

2. 2
   Run signal wires

   One wire from each button's other leg to its assigned GPIO, following the pin table (enter→GPIO 0, cancel→GPIO 1, tab→GPIO 2, up→GPIO 3, down→GPIO 4, right→GPIO 5, left→GPIO 6, scan→GPIO 7, mute→GPIO 10). Keep every run short.

3. 3
   Wire the WS2812 lens LED

   DIN → GPIO 21, VCC → 5 V, GND → GND. This is the LED that blinks teal when the Pokédex speaks.

4. 4
   Optional — cap and diode

   A small capacitor across each button and a 1N4148 diode per line improve debounce and protection. This build does not use them and works fine; add them if you want the cleanest possible signal, or move to a 3×3 matrix on a future PCB.

Test the link before assembly

# Confirm the ESP32 enumerated
ls /dev/ttyACM* /dev/ttyUSB* 2>/dev/null

# Grant serial access (once; log out and back in after)
sudo usermod -a -G dialout $USER

# Watch the output — press each button and watch its keyword appear
python3 -c "
import serial
s = serial.Serial('/dev/ttyACM0', 115200, timeout=1)
print('press buttons... ctrl-c to exit')
while True:
    b = s.read(1)
    if b: print(b.decode(errors='replace'), end='', flush=True)
"

Everything runs in Python 3 on the UNO Q's Ubuntu 24. There is no Arduino sketch on the UNO Q side at all.

8.0 — Accounts, API keys & getting the code

Before installing anything, set up three free accounts and get the project code. Q-dex uses three external services — each needs a key, and each key goes in its own text file on the board. These key files are never committed to GitHub (they are excluded by .gitignore); anyone replicating the build uses their own keys.

Step 1 — Get the code onto the board

git clone https://github.com/jzofalltrades/Q-dex.git
cd Q-dex

Step 2 — SerpAPI key (reverse image search)

1. Go to serpapi.com and create a free account. The free tier gives 250 searches a month, which is plenty for building and testing — you can buy more if you ever need them, but 250 covered all our development.
2. After signing up, open your Dashboard → API Key.
3. Copy the key and save it on the board:

echo "PASTE_YOUR_SERPAPI_KEY_HERE" > ~/Q-dex/serp_key.txt

Step 3 — Claude API key (Professor Oak)

1. Go to console.anthropic.com and create an account.
2. Add a small amount of credit under Billing. I put in $5 and it barely moves — each question uses very few tokens, so even the minimum top-up (around $1, if Claude allows it) lasts a long time.
3. Open API Keys → Create Key, copy it (it starts with sk-ant-), and save it:

echo "PASTE_YOUR_CLAUDE_KEY_HERE" > ~/Q-dex/claude_key.txt

Step 4 — GitHub token (image hosting)

The camera capture has to be readable by Google Lens at a public web address. Q-dex uploads each photo to a GitHub repository and uses the public raw URL, so the board needs a token to upload.

1. On GitHub: Settings → Developer settings → Personal access tokens → Tokens (classic).
2. Click Generate new token (classic) and tick the whole repo scope box.
3. Copy the token (it starts with ghp_) and save it:

echo "PASTE_YOUR_GITHUB_TOKEN_HERE" > ~/Q-dex/gh_token.txt

Step 5 — Point image hosting at your own repo

Create a public GitHub repository to hold your captures (it can be the same Q-dex repo, or a separate one). Then open pokedex_app.py and set these three values near the top to your GitHub username and that repo:

GH_USER  = 'your-github-username'
GH_REPO  = 'your-capture-repo'     # must be a PUBLIC repo
GH_DIR   = 'captures'              # folder inside it for the photos

The repo must be public — Google Lens can only read a public raw URL. The app auto-prunes the capture folder to the most recent 20 images, so it never grows without bound.

8.1 — Dependencies

sudo apt update && sudo apt install -y \
     python3-pip git build-essential cmake \
     alsa-utils espeak

# Keep pip's build cache off the small root partition
mkdir -p ~/tmp
export TMPDIR=$HOME/tmp

pip install --break-system-packages \
    pygame pillow numpy requests pyserial ai-edge-litert

8.2 — Building the Pokémon database

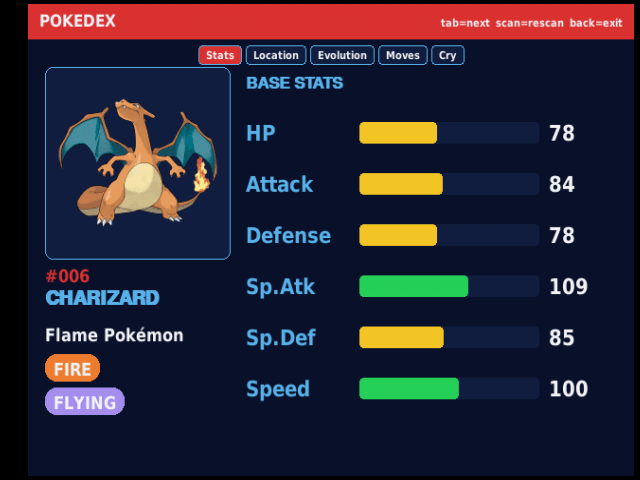

The Pokédex needs data for all 1025 Pokémon — types, stats, descriptions, evolutions and more. Rather than type any of that by hand, it is pulled once from PokéAPI (pokeapi.co), a free public REST API that serves every piece of Pokémon data as JSON. A small script walks every Pokémon from 1 to 1025, asks PokéAPI for its details, and saves the whole thing to a single file the app loads at startup.

For each Pokémon the script makes three requests — the main entry, its species entry (for the genus, description and evolution link) and its evolution chain — and keeps the fields the Pokédex actually shows: id, types, abilities, the first few moves, base stats, genus (the "Seed Pokémon" style label), height, weight, the flavour-text description, the evolution chain, and the region. The region is not fetched — it is worked out from the National Dex number (1–151 Kanto, 152–251 Johto, and so on):

import requests, json, os

DB_PATH = os.path.expanduser('~/pokedex/pokemon_db.json')

def region_of(i):
    if i <= 151: return 'Kanto'
    if i <= 251: return 'Johto'
    if i <= 386: return 'Hoenn'
    if i <= 493: return 'Sinnoh'
    if i <= 649: return 'Unova'
    if i <= 721: return 'Kalos'
    if i <= 809: return 'Alola'
    if i <= 905: return 'Galar'
    return 'Paldea'

db = {}
for i in range(1, 1026):
    data = requests.get(f'https://pokeapi.co/api/v2/pokemon/{i}', timeout=15).json()
    sp   = requests.get(data['species']['url'], timeout=15).json()

    types  = [t['type']['name'] for t in data['types']]
    stats  = {s['stat']['name']: s['base_stat'] for s in data['stats']}
    moves  = [m['move']['name'] for m in data['moves'][:6]]
    genus  = next((g['genus'] for g in sp['genera']
                   if g['language']['name'] == 'en'), '')
    desc   = next((ft['flavor_text'].replace('\n', ' ')
                   for ft in sp['flavor_text_entries']
                   if ft['language']['name'] == 'en'), '')

    db[data['name']] = {
        'id': i, 'types': types, 'stats': stats, 'moves': moves,
        'genus': genus, 'height': data['height'] / 10.0,   # -> metres
        'weight': data['weight'] / 10.0,                   # -> kg
        'description': desc, 'region': region_of(i),
        # 'evolution': parsed separately from the species' evolution chain
    }
    print(f'{i}/1025 {data["name"]}', end='\r')

with open(DB_PATH, 'w') as f:
    json.dump(db, f)

The artwork images

The official artwork for each Pokémon comes from the same PokéAPI project — specifically its public sprites repository on GitHub, which hosts a transparent PNG of every Pokémon's official artwork. A second small script downloads all 1025 of them (as RGBA, so the transparent background is kept) into a local ui_images/ folder, named by dex number, and skips any it already has so it can be safely re-run:

import requests, os
from PIL import Image
from io import BytesIO

UI_DIR = os.path.expanduser('~/pokedex/ui_images')
os.makedirs(UI_DIR, exist_ok=True)

for i in range(1, 1026):
    path = f'{UI_DIR}/{i}.png'
    if os.path.exists(path):
        continue    # already downloaded — skip
    url = ('https://raw.githubusercontent.com/PokeAPI/sprites/master/'
           f'sprites/pokemon/other/official-artwork/{i}.png')
    img = Image.open(BytesIO(requests.get(url, timeout=10).content)).convert('RGBA')
    img.save(path)
    print(f'{i}/1025', end='\r')

After these two scripts have run once, the device has everything it needs offline: one JSON file of data and a folder of 1025 artwork PNGs. Both build_db.py and download_ui_images.py are in the repo.

8.3 — Build whisper.cpp (offline speech-to-text)

What it is: whisper.cpp is a fast, lightweight C++ port of OpenAI's Whisper speech-recognition model. It converts recorded audio into text — entirely on the device, with no internet.

Why we use it, and for what: Professor Oak lets you ask a question out loud. To answer, the device first has to turn your spoken words into text it can send to Claude. That speech-to-text step is whisper.cpp's job. We use it (rather than a cloud speech API) because it runs locally — no round trip, no per-use cost, and the voice assistant keeps working even on a flaky connection. We use the tiny.en English model because it is the best accuracy-for-speed trade-off on this hardware: small enough to run quickly on the UNO Q, accurate enough for short questions. Build it once:

cd ~
git clone https://github.com/ggerganov/whisper.cpp
cd whisper.cpp

cmake -B build
cmake --build build -j4

# tiny English model — best accuracy/speed tradeoff on this hardware
bash ./models/download-ggml-model.sh tiny.en

# binary:  ~/whisper.cpp/build/bin/whisper-cli
# model:   ~/whisper.cpp/models/ggml-tiny.en.bin

8.4 — Audio configuration

The USB sound card must be addressed as plughw:1,0, never raw hw:1,0. The plug layer performs sample-rate conversion; addressing the raw device returns 44 100 Hz, and whisper.cpp requires 16 000 Hz. This single detail causes more silent failures than anything else in the build.

# Which card index is the USB sound card?
arecord -l

# Record 5 s at 16 kHz mono — the format whisper.cpp needs
arecord -D plughw:1,0 -d 5 -f S16_LE -r 16000 -c 1 /tmp/test.wav

# File should be ~160 KB. If it is ~440 KB, the rate is wrong.
ls -lh /tmp/test.wav

# Transcribe
~/whisper.cpp/build/bin/whisper-cli \
  -m ~/whisper.cpp/models/ggml-tiny.en.bin \
  -f /tmp/test.wav

# Test speech output
espeak "Professor Oak online" 2>/dev/null

8.5 — How the code is organised

The whole application lives in one main file, pokedex_app.py, plus a small helper that reads the keypad. Rather than dump the whole file here, this section explains the parts that matter — how the screens work, how the camera stays smooth, how speech is turned into text, and how the on-device model runs.

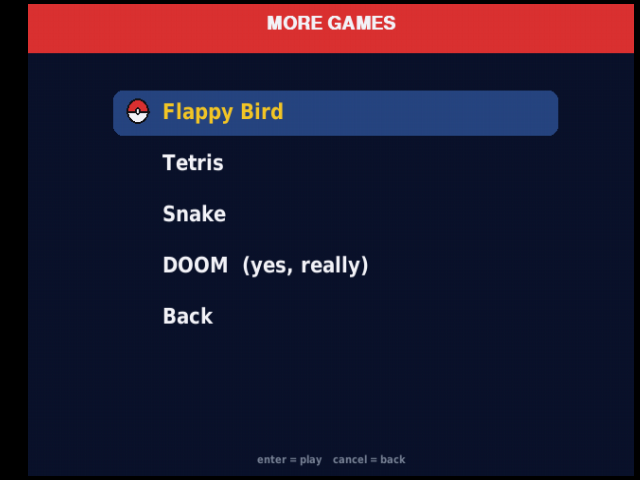

The screen loop

Each screen is a handler function. One main loop reads input events, calls the current screen's handler, and draws. Switching screens is just changing a state value — the loop itself never changes, which keeps input response instant even while the AI is working.

The camera — a smooth live feed with no lag

On the scan screen the camera shows a live preview. The trick to keeping it smooth is never doing slow work on the main loop. The camera is read continuously, and the latest frame is simply drawn each time the screen refreshes — so the preview always shows the most recent image and never stutters. The heavy work (uploading a photo, or running the neural network) happens separately, so pressing SCAN never freezes the live view.

The speech pipeline — how a spoken question becomes an answer

Professor Oak works as a chain, and it helps to see the whole chain before the code:

1. Record — capture a few seconds of audio from the USB microphone (at 16 kHz mono, the format whisper needs).
2. Speech-to-text — whisper.cpp turns that recording into text on the device.
3. Think — the text is sent to Claude, along with your trainer profile and real progress, which replies with Oak's answer.
4. Speak — espeak reads the answer out loud through the amplifier and speaker, and the lens LED blinks teal while it talks.

Below is a simplified version of the record + transcribe steps (the real code in pokedex_app.py adds error handling and the Claude call):

"""Offline speech-to-text: record -> whisper.cpp -> plain text."""

import re, subprocess
from pathlib import Path

WHISPER = Path.home() / "whisper.cpp/build/bin/whisper-cli"
MODEL   = Path.home() / "whisper.cpp/models/ggml-tiny.en.bin"
WAV     = Path("/tmp/oak_input.wav")

def record(seconds=5):
    # plughw (not raw hw) so the audio is resampled to 16 kHz mono
    subprocess.run(
        ["arecord", "-D", "plughw:1,0", "-d", str(seconds),
         "-f", "S16_LE", "-r", "16000", "-c", "1", str(WAV)],
        check=True, capture_output=True,
    )
    return WAV

def transcribe(wav=WAV):
    out = subprocess.run(
        [str(WHISPER), "-m", str(MODEL), "-f", str(wav), "-nt"],
        check=True, capture_output=True, text=True,
    ).stdout
    # keep only the spoken text from whisper's output lines
    return " ".join(line.strip() for line in out.splitlines() if line.strip())

Vision inference — the on-device model

The on-device recogniser (PhyAI mode) runs the MobileNetV2 model through LiteRT. The model is loaded once at startup, not per scan — loading a TFLite interpreter takes a noticeable fraction of a second, so doing it on every frame would make the live classification stutter. Each camera frame is resized to 160×160 (the size the model was trained on), fed through the model, and the highest-scoring class becomes the answer:

"""On-device Pokemon recognition — MobileNetV2 via LiteRT."""

import numpy as np
from PIL import Image
from ai_edge_litert.interpreter import Interpreter

INPUT_SIZE = (160, 160)   # must match how the model was trained

class PokemonVision:
    def __init__(self, model_path, labels_path):
        self.interp = Interpreter(model_path=model_path)
        self.interp.allocate_tensors()
        self.inp = self.interp.get_input_details()[0]
        self.out = self.interp.get_output_details()[0]
        with open(labels_path) as fh:
            self.labels = [l.strip() for l in fh if l.strip()]

    def predict(self, frame_rgb):
        img = Image.fromarray(frame_rgb).resize(INPUT_SIZE)
        arr = np.asarray(img, dtype=np.uint8)[None]   # int8 model -> uint8 input
        self.interp.set_tensor(self.inp['index'], arr)
        self.interp.invoke()
        scores = self.interp.get_tensor(self.out['index'])[0]
        best = int(np.argmax(scores))
        return self.labels[best], float(scores[best])

8.6 — First run

cd ~/Q-dex

# The keypad reader must run first — it holds the serial port and
# forwards button presses (and the lens-LED signal) to the app.
python3 key_serial.py &

# Then launch the Pokedex itself.
python3 pokedex_app.py

8.7 — Common commands (copy-paste cheat sheet)

These are the commands used constantly while building and running Q-dex. Most are run over SSH from a laptop. Replace the IP with your board's own address.

Running the Pokédex

cd ~/Q-dex

# 1) Start the keypad reader FIRST (it owns the serial port and
#    forwards button presses + the lens-LED signal to the app).
python3 key_serial.py &

# 2) Start the Pokedex app itself.
python3 pokedex_app.py

The & runs the keypad reader in the background so the same terminal can then launch the app. Start the keypad first — if the app starts first, nothing owns the serial port and the buttons do nothing.

Stopping everything

# Force-stop the app and the keypad reader (frees the screen and serial port)
pkill -9 -f pokedex_app.py
pkill -9 -f key_serial.py

Copying files from the laptop to the board

# Copy one file into the project folder on the board (scp = secure copy)
scp pokedex_app.py arduino@192.168.1.56:~/Q-dex/

# Copy an entire folder
scp -r some_folder arduino@192.168.1.56:~/Q-dex/

Verify a file arrived intact (before running it)

# Line count — should match what you sent
wc -l pokedex_app.py

# Check the Python file has no syntax errors WITHOUT running it
python3 -c "import ast; ast.parse(open('pokedex_app.py').read()); print('OK')"

File transfers occasionally corrupt. This two-second check (line count + parse) catches a broken copy before it wastes your time as a confusing "bug" at runtime.

Running with a screen when SSHed in

# If a program needs the physical display but you launched it over SSH,
# tell it which display to draw on:
DISPLAY=:0 python3 pokedex_app.py

# List / rotate the display
DISPLAY=:0 xrandr
DISPLAY=:0 xrandr --output HDMI-1 --rotate left

Handy checks

hostname -I          # find the board's IP address
arecord -l           # list audio input devices (the USB sound card)
ls /dev/video*       # is the camera detected?
ls /dev/ttyACM*      # is the ESP32 detected?

Q-dex is not a thin client that phones a cloud API for every decision. Two AI workloads run directly on the Arduino UNO Q: a computer-vision classifier that identifies Pokémon from the camera, and a speech pipeline that lets Professor Oak listen and talk back. Everything a person can see and hear the device do — recognising a Pokémon, transcribing speech, speaking a reply — runs locally on the board. That is what makes this Physical AI and not just an app: the intelligence is embodied in hardware and acts on the physical world in real time.

9.1 · On-Board Image Recognition — "Who's That Pokémon?"

When a card or figure is held in front of the USB camera and the scan button is pressed, the frame is captured, pre-processed, and passed through a custom-trained classifier on the device itself — no image ever leaves the Pokédex. The predicted Pokémon and its confidence drive the "Who's That Pokémon?" reveal and the Pokéball-throw animation.

How the model was trained

9.2 · On-Board Speech-to-Text

Professor Oak listens through the USB microphone. Audio is recorded on the board and transcribed by whisper.cpp — a C/C++ port of OpenAI's Whisper that runs efficiently on CPU with no GPU and no cloud call. The transcription appears on screen above the trainer character and becomes the question sent to the assistant.

9.3 · On-Board Text-to-Speech & the Oak Assistant

The transcribed question is answered by the Professor Oak assistant. The brain that actually writes Oak's reply is Claude, an AI language model — this is the one step in the voice loop that uses the network, while the listening (whisper.cpp) and speaking (eSpeak) both run on the board. The generated answer is then spoken aloud on the device through the eSpeak engine and the USB speaker. Oak is trainer-aware — Claude is given the active profile so he can reference the trainer's own XP, badges and progress — and a physical mute button (GPIO 10) cuts the audio instantly mid-sentence for a natural, interruptible conversation.

The enclosure is designed in Fusion 360 (document pokedexV3.3). Export each body individually: right-click body → Save as Mesh → STL, binary, high refinement.

9.1 — Print settings

The whole enclosure was printed in PLA, except the dome lens which is clear PETG so the WS2812 LED shines through it. Everything used a 0.20 mm layer height — no need for finer layers. The complete set of parts takes 25+ hours of printing in total, so plan for a couple of print days.

Total print time across all parts is about 25 hours or more. Print a single button cap and its matching hole first as a quick test of fit before committing to the long shell prints.

9.2 — Critical geometry

These dimensions are load-bearing for the design. Changing any one of them breaks lid closure.

9.3 — Assembly sequence

Order matters — several steps become impossible if done out of sequence.

1. 1
   Dry-fit everything first

   Before any glue or solder, test-fit every printed part together. Sand button holes with 220-grit until caps slide freely. Fixing fit problems after wiring is painful.

2. 2
   Seat the display in its bezel

   Press the panel in from the front. Run a thin hot-glue bead around the inside edge only — keep glue off the ribbon connector. Let it set fully before handling.

3. 3
   Mount the UNO Q

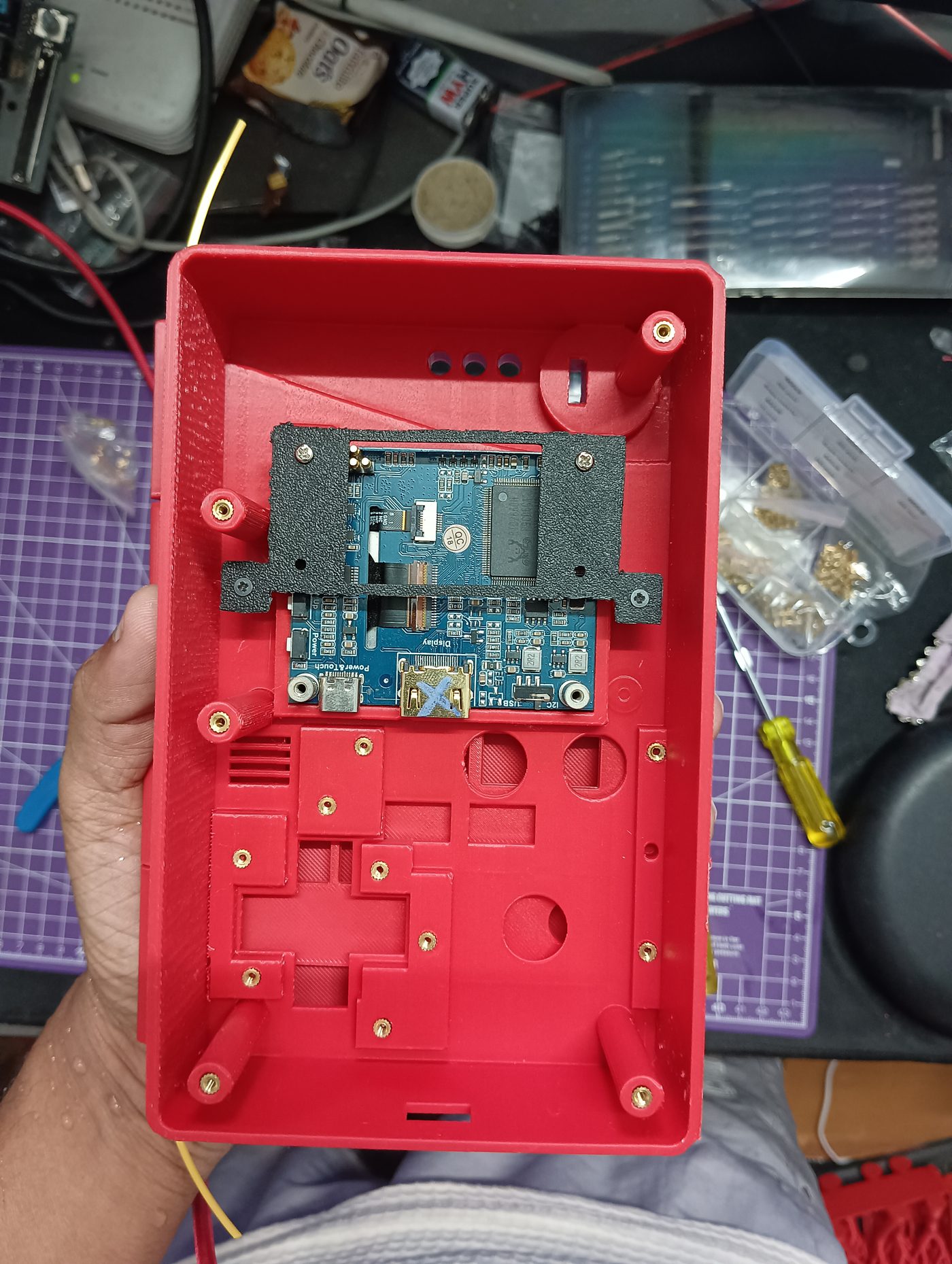

   Seat the board on the UNO Q Mount body, rotated 90°. Secure with four M2.5×6 mm screws. Attach the mount into the left shell before any cables are connected.

4. 4
   Route cables before closing anything

   HDMI first (it is the stiffest and least forgiving), then camera USB, then sound card USB, then the ESP32 link. Leave a 15 mm service loop at the hinge so the lid can open without tension.

5. 5
   Install buttons and the ESP32-C3

   Press tactile switches through their holes from outside. Hot-glue the ESP32-C3 to a flat interior area of the right shell with its USB-C port facing the cable exit. Solder per §7.3, then press each cap on — light thumb pressure only.

6. 6
   Mount camera, mic and speaker

   Press-fit the camera into the front lens cutout. Mount the mic on the front near the top so the user naturally speaks toward it. Position the speaker facing an outlet slot, not into solid wall.

7. 7
   Fit the WS2812 lens LED and dome lens

   Push the WS2812 LED through from inside so it sits under the lens, then snap the clear PETG dome lens over it from outside. It should click without glue. If it is loose, a single drop of superglue on the flange is enough.

8. 8
   Press in the 18 dummy inserts

   Work top row downward. The retention flanges hold them — no adhesive. Going bottom-up tends to misalign the last row.

9. 9
   Test the hinge closure

   The hinge is printed as part of the geometry — there is no pin to insert. Open and close the lid several times. Confirm the LidFacePlate never contacts a button cap — hold it up to a light and look for the small clearance gap.

10. 10
    Close up and power on

    Fit six M3×8 mm screws at the shell bosses. Snap the BackPlate onto its perimeter clips last — it is designed to come off again for servicing, so do not glue it.

Run this suite after assembly. Record your own numbers in the right-hand column — a build that passes all of these is a working Q-dex.

sudo dmesg -w | grep -iE "xhci|disconnect|reset|over-current"

Every failure encountered during this build, with its actual root cause and fix.

Work top to bottom. Do not start a phase until the previous checkpoint passes — this is the difference between a four-hour build and a four-day one.

Extending the project

• Expand the vision model — retrain MobileNetV2 on more species. The label file and inference wrapper need no code changes, only a new .tflite and labels.txt.
• Battery power — a 5 V 3 A power bank in place of the mains adapter makes it genuinely portable.
• Trade over serial — two Q-dexs connected by USB could exchange caught Pokémon using the same byte-protocol pattern as the keypad.
• Haptics — a small vibration motor on a spare ESP32-C3 GPIO gives physical feedback on a successful catch.
• More screens — implement the Screen ABC and add one route entry. Nothing else changes.

Everything in the Q-dex repository, grouped by purpose — so anyone can find their way around the project at a glance.

Folders

Core application

On-device AI

Scripts & setup

Website & docs

Built by Jayant · Nagpur, India · 2026

Q-dex is a solo submission to the Arduino Physical AI Challenge India 2026, Gaming · Robotics & Interactive AI track.

If you build one, open an issue on the repository with your photos and your results from the §10 validation table. Deviations from the expected numbers are useful — they make this guide better for the next builder.
